Our Products

Linear System

Linear System

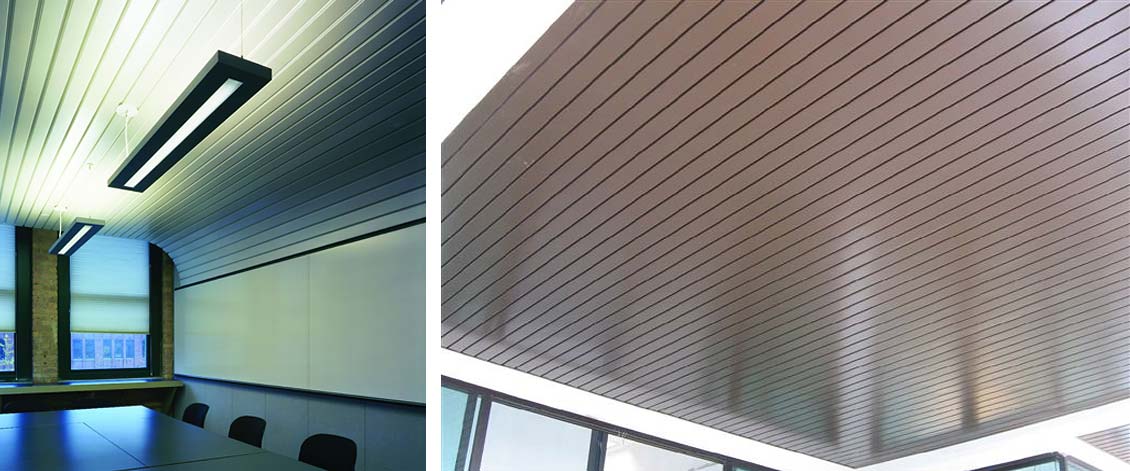

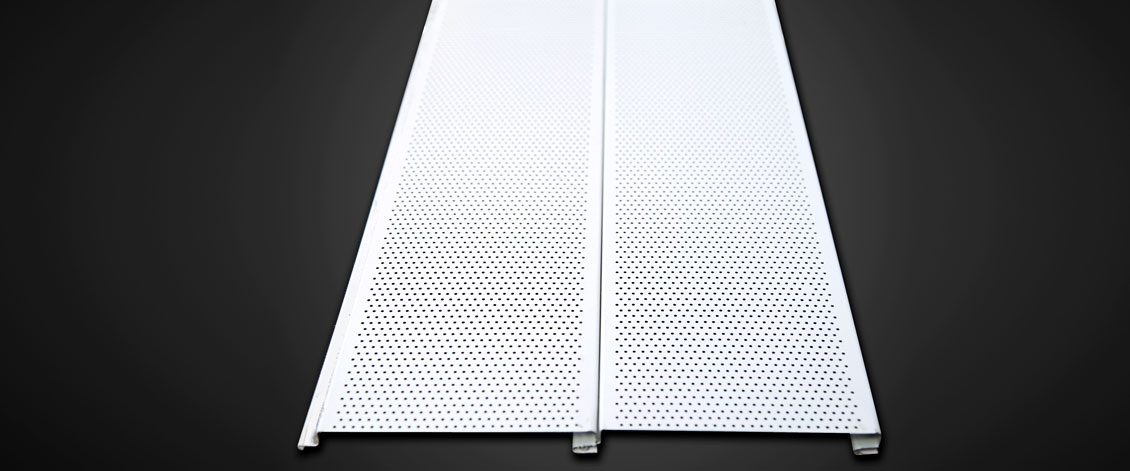

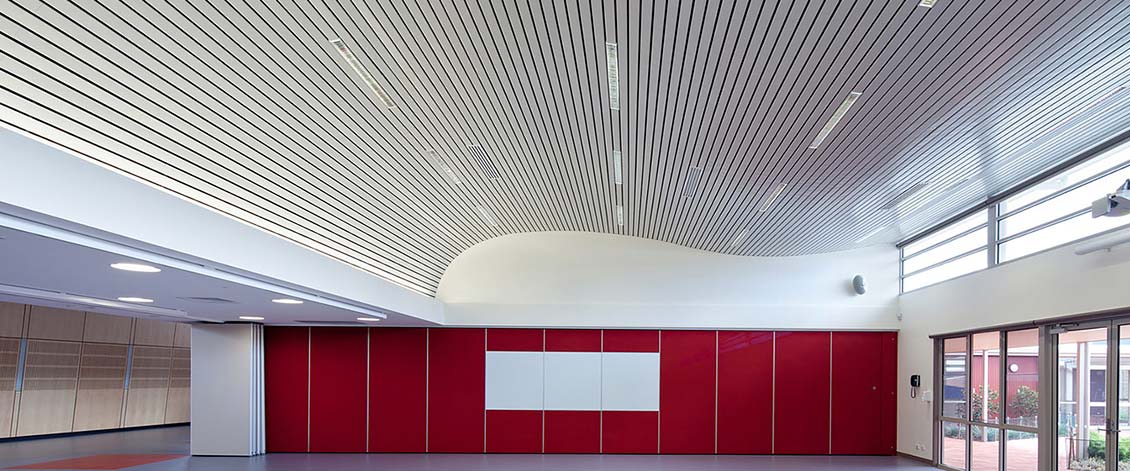

GridSquare® Linear Metal Ceiling System combines elegant linear pans and a specially engineered suspension system to create dynamic ceilings with clean, contemporary planes or gently rolling waves. Elegant and understated, Linear Metal Ceilings provide great flexibility in design, with closed-gap and open-gap options that allow for a variety of visual effects. This ceiling system also comes in 3 modular widths and is compatible with perforated or solid panels. This Metal Ceiling System comprises of long linear aluminium pans offered in specified widths with roll-finished edges for an open reveal between pans. A variant with integral flanges is also offered that overlaps to form a closed reveal appropriate for exterior soffit applications. Use the system to enhance visual impact in retail, hospitality, entertainment and office environments.



Specifications (As per DSR)

GI with 60 micron Powder Coating
Standard Size* Bevel Edge Square Edge Thickness
600 x 600 mm Yes Yes 0.5 mm
600 x 1200 mm Yes Yes 0.6/0.7 mm

* Other dimensions available on request.


Specifications (As per DSR)

Aluminium with 60 micron Powder Coating
Standard Size* Bevel Edge Square Edge Thickness
600 x 600 mm Yes Yes 0.6/0.7 mm
600 x 1200 mm Yes Yes 0.6/0.7 mm

* Other dimensions available on request.


Features

  • 2-3 hours fire rating assemblies
  • Excellent Sound Control / Noise Reduction Performance
  • Withstands dynamic wind loads/span>

Advantages

  • Design Flexibility
  • Simple downward access
  • Extensive Range
  • Easy Above-Ceiling Accessibility/li>
  • Service Integration

Applications

  • Retail
  • Hospitality
  • Entertainment
  • Office
