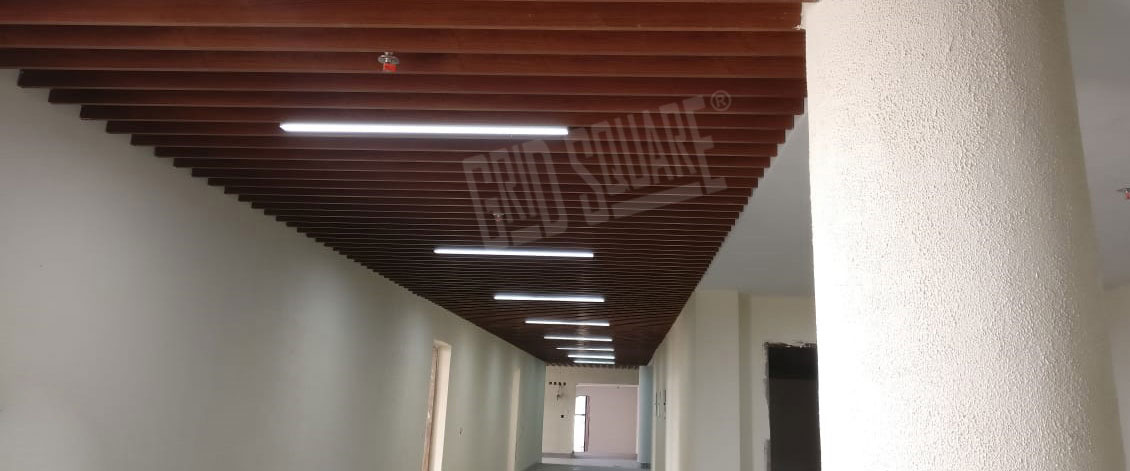

Baffle System

GridSquare® baffle system provides an eloquent an sophisticated design solution to create a clean spacious appearance. It also provides scope for excellent acoustics and ventilation system.

Specifications (As per DSR)

GI Steel Sheet
Precoated (15 microns)/Powder coated (60 microns)

Length	Width	Height	Thickness
3000mm	25mm	100mm	0.7/0.9 mm
3000mm	25mm	200mm	0.7/0.9 mm
3000mm	50mm	100mm	0.7/0.9 mm
3000mm	50mm	200mm	0.7/0.9 mm

* Other dimensions available on request.

Technical Specifications

Features

• Humidity Resistant
• Recyclable
• Environment Friendly
• Fire Resistant

Advantages

• Creative customised solutions
• Easy Installation and accessibility
• Spacious and elegant appearance

Applications

• Airports
• Atriums
• Auditoriums
• Cafeteria
• Classrooms
• Corridors
• Gymnasiums
